Smart Glass
What's Smart Glass

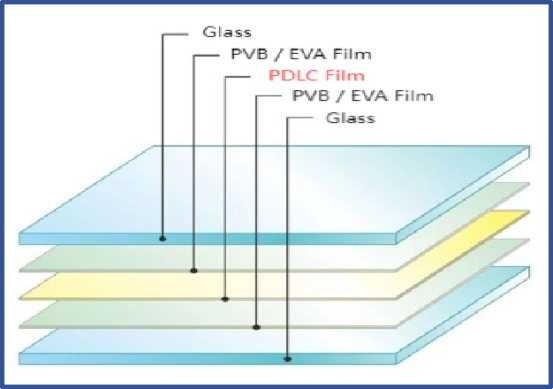

Smart Glass (also call switchable Glass) is a new type of special photoelectric glass product with an interlayer structure, which is formed by laminating a liquid crystal film between two layers of glass and then bonding them together under high temperature and high pressure.
The user controls the transparency and opacity of the glass by switching the current on or off.
How does it works ?
When smart glass cuts off the power supply, the liquid crystal molecules inside will be in an irregularly scattered state. At this time, it presents a transparent appearance without being opaque. When it is powered on, the liquid crystal molecules inside will be arranged in an orderly manner, allowing light to pass freely. At this point, the glass instantly becomes transparent.
Its core of technology are PDLCs ( known as polymer-dispersed liquid crystals), In simple terms, polymers allow liquid crystals to be embedded in the film, which then can be sandwiched between panels of glass.
so the smart glass also call PDLCs glass.
The dimming principle of PDLC film is based on the change in the molecular arrangement of the liquid crystal under the action of an electric field. When an electric field is applied to the PDLC sheet, the arrangement state of the liquid crystal molecules will change, thereby altering the degree of light transmission.
When powered on, the liquid crystal molecules are arranged in an orderly manner, allowing light to pass through and remain in a transparent state.
When powered off， the molecules are randomly distributed, causing the light to scatter and produce a fog-like effect.
Specification:
|
Material: |
glass, EVA/PVB film PDLC film |
|
|
Thickness: |
3+3, 4+4,5+5,6+6.8+8,10+10,12+12 |
|
|
Colors: |
Transparent-Translucent, Color-Translucent |
|
|
Size: |
Customized, depending on the oven's design |
|
|
Light transmittance |
Transparent state |
60%~88% |
|
Atomization state |
1%~10% |
|
|
Responsive time |
0.1~1 seconds |
|
|
Working voltage |
24V、48V、65V |
|
|
Average energy consumption(AEC) |
5-7W/㎡ |
|
|
Operating temperature range |
-20℃-60℃ |
|
|
Service life |
5~10 years |
|
Properties of products
1.Privacy
The primary function is the privacy protection, which allows for the control of the transparency of the glass at any time.
2.Safety
Smart glass is tempered laminated glass, double safety.
Good resistance to impact, preventing debris from flying off after breakage.
3.Environmental
Its film can block over 99% of UV and 98% of infrared rays.
By shielding some of the infrared rays, it reduces heat radiation and transmission.
It can prevent the indoor furnishings from fading or deteriorating due to ultraviolet radiation, and protect people from diseases caused by direct exposure to ultraviolet rays.
4.Sound insulation
The film the middle of the glass have a sound damping effect. They can partially block noise.
5.Projection
As a highly excellent projection hard screen, in a well-lit environment, the projection image quality will be extremely clear and outstanding if a high-lumen projector is used.
Application
Privacy requirements: Bathroom, office partition
Intelligent lighting: Skylights, curtain walls
Decorative effect: Art installation. Projection screen
