Meeting Room Clear Glass Partition Walls With Laminated Glass Panel ISO 12543
Meeting Room Clear Glass Partition Walls With Laminated Glass Panel ISO 12543
| Type: | Glass Partition Wall | Material: | Glass |
|---|---|---|---|
| Color: | Transparent | Thickness: | 5mm+0.76PVB+5mm |
| Width: | Customized | Height: | Customized |
| Finished: | Laminated | ||
| High Light: |
outdoor glass partitions, glass partition panels |
||
Meeting Room Clear Glass Partition Walls with Laminated Glass Panel ISO 12543

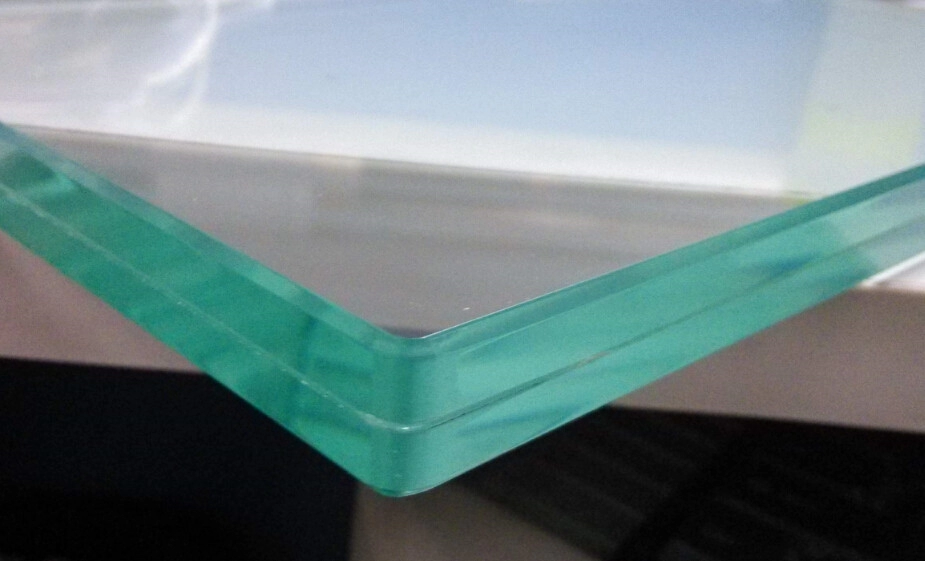

About Laminated Glass
Laminated glass is a composite glass products ,that is made by two or more pieces of glass with a layer or multilayer organic polymer intermediate film.After special high temperature and high pressure process,what makes glass and interlayer bonding as a whole composite glass products.
| Features |
| 1. Safety: When laminated glass is attacked by outside force, it hard to be penetrated because |
| PVB film has strong tenacity and can absorb and weaken a mass of striking energy. Even if it's broken, the splinters will stick to the interlayer and not scatter. |
| 2. Sound Insulation: PVB film can effectively prevent sound wave. |
| 3. Anti-UV: Laminated glass can effectively present UV. |
| Process: CNC Cutting--Grinding--waterjet cutting for the notch--tempering--glasses rolling--Autoclaving--Packing. |
| Application |
| Building, window and door, high grade curtain wall, lighting, skylight, elevated floor, furniture, |
| showcase, counter, automotive glass and aquarium etc. |
| Specification | |
| Max Size: | 2000*6000mm |
| Single glass thick: | 3-20mm |
| PVB: | 0.38mm and multiple of 0.38 mm ( Chinese Brand or Sekisui/DuPont/ Solutia/ Trosifol/ ) |
| PVB color: | clear, milk white, opaque white, gray,green, bronze, blue, red etc. |
| Glass color: | clear, extra clear Euro gray, dark gray, Ford blue, ocean blue,dark blue, French Green and reflective glass like low e glass. |
| Regular Thickness: | 3+0.38+3mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm, 6+1.14+6mm, 6+1.52+6mm;8+0.76+8mm, 8+1.52+8mm etc, could be produced as per request. |
| Panel size: | 1830 x 2140mm ; 1830 x 2440mm; 2134 x 3300mm,etc. |
